Product Description

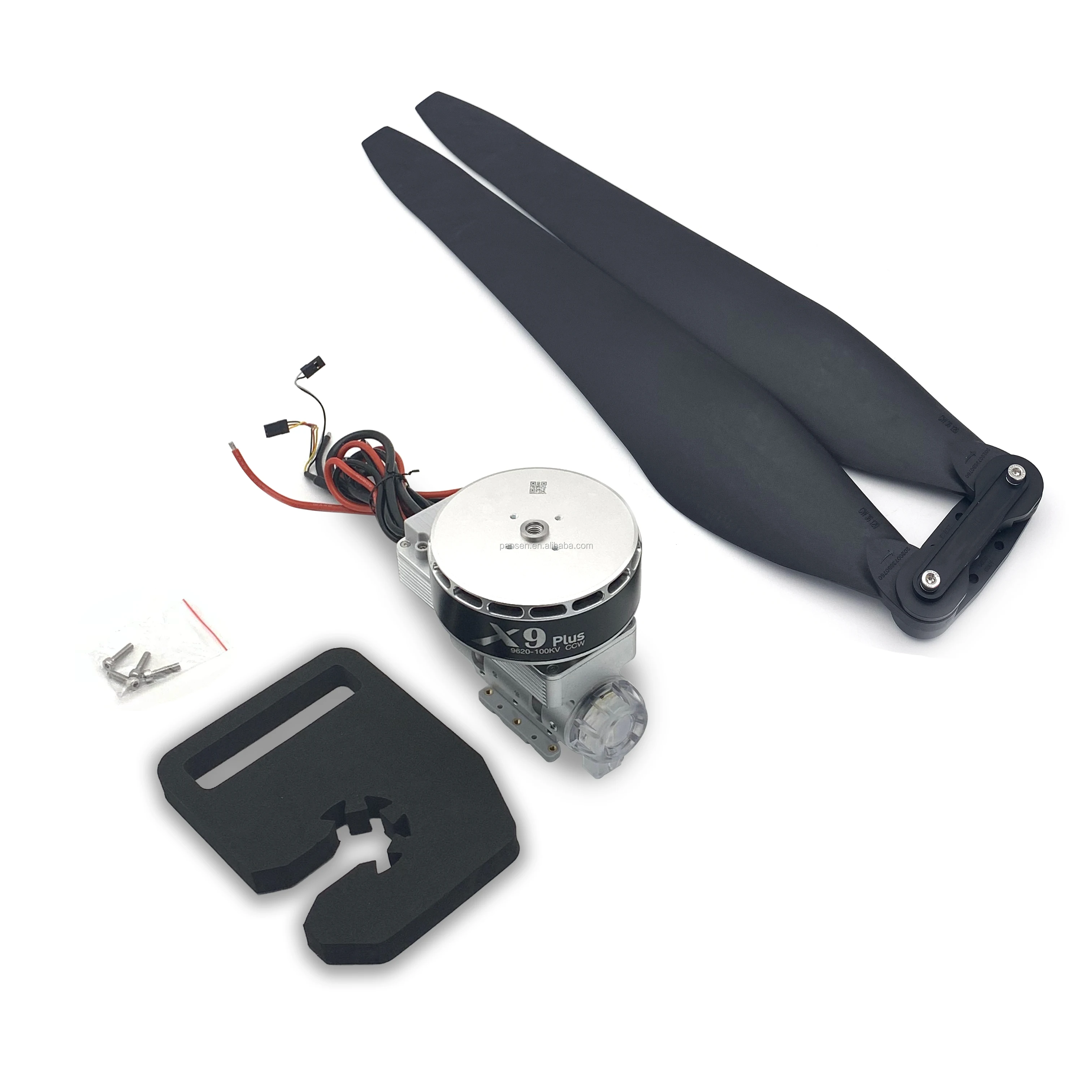

X9 Plus-12-14S
* Technical Parameter
* Technical Parameter
Maximum pulling force: 26.5kg/shaft (53.6V, sea level)
Recommended take-off weight: 11-13kg/axis (sea level)
Recommended battery: 14S (LiPo)
Ambient temperature: (-20~50℃)
Powertrain Weight: 1774g
Protection class: IP*7
* Motor
KV value: 100KV(14S)
Stator size:96*20mm
Applicable carbon tube outer diameter: 40mm (diameter)
* ESC
Support battery: 6-14S(LiPo)
PWM input signal level: 3.3V/5V
Compatible signal frequency: 50-500Hz
Working pulse width: 1050-1950us (curing)
Maximum allowable voltage: 60.9V(14S)
Maximum allowable peak current (10 seconds)
120A (requires good cooling conditions)
BEC: none

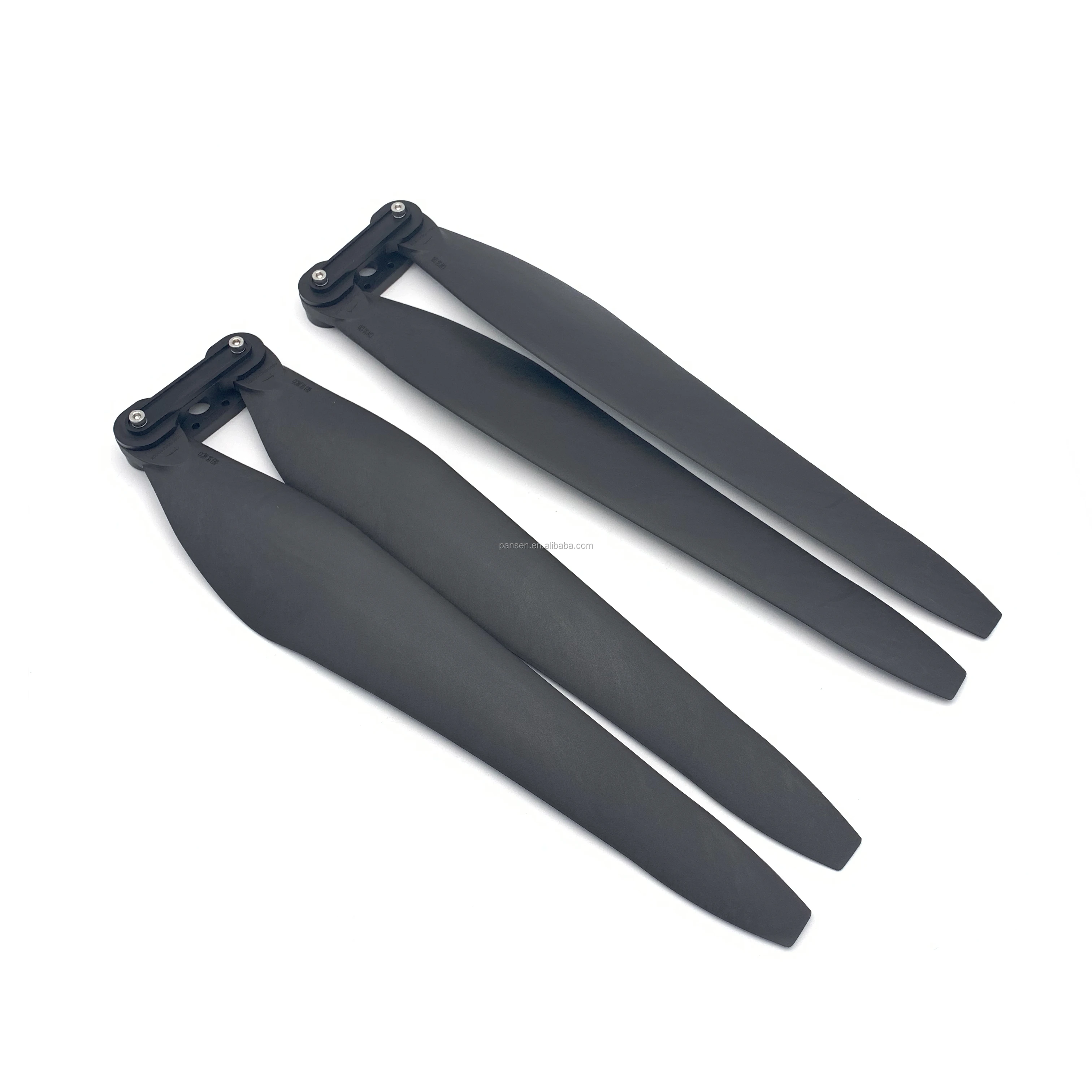

* Propeller
36190(36 inches)
