Original Hobbywing X9 14S FOC Integrated Motor Power System With 34inch 3411 Propeller for 40mm Agricultural Drones

Name: Original Hobbywing X9 14S FOC Integrated Motor Power System With 34inch 3411 Propeller for 40mm Agricultural Drones
SKU: 9296
Price: 22552.08 INR
Availability: InStock

Original price was: ₹22,579.34.Current price is: ₹22,552.08.

+ Free Shipping

Key attributes

Other attributes

place of origin

India

brand name

hobbywing

model number

Max. Thrust

15.3kg/Axis 48V, Sea Level

Recommended LiPo Battery

12-14S Lipo

Recommended Takeoff Weight

5-7kg/Axis(48V,Sea Level)

Combo Weight

1040g

Category: Hobbywing

Ask a Question

Product descriptions from the supplier

Warning/Disclaimer

Compliance Reminder for Prohibited and Restricted products.

California Proposition 65 Consumer Warning.

If you need more quantity, you can contact customer service to give you a discount

Product Details

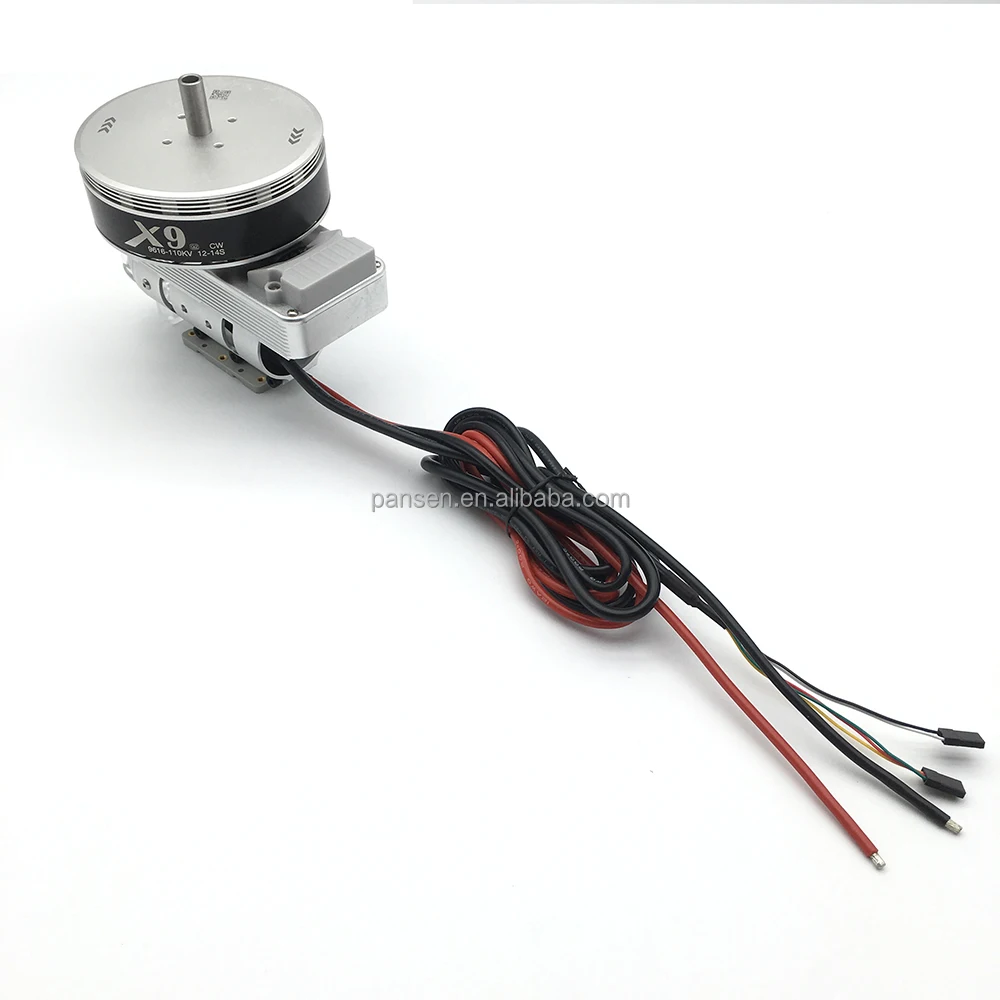

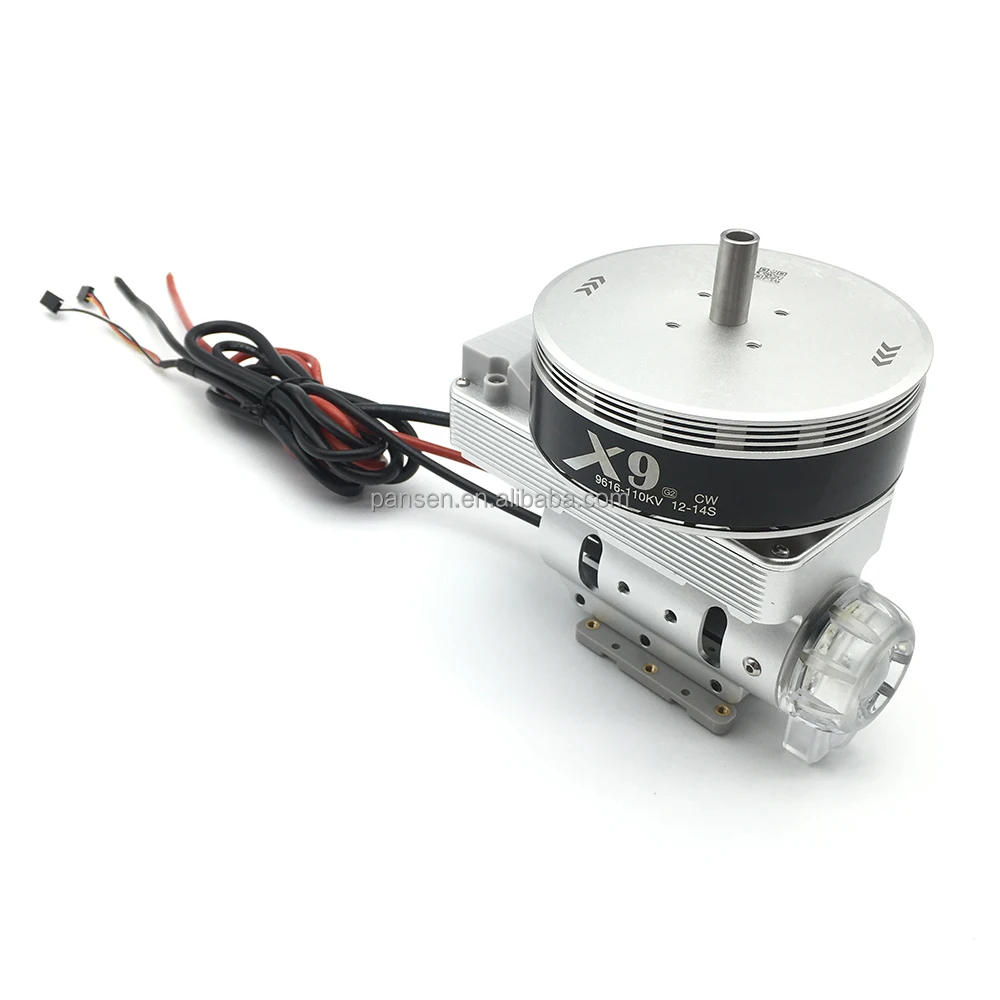

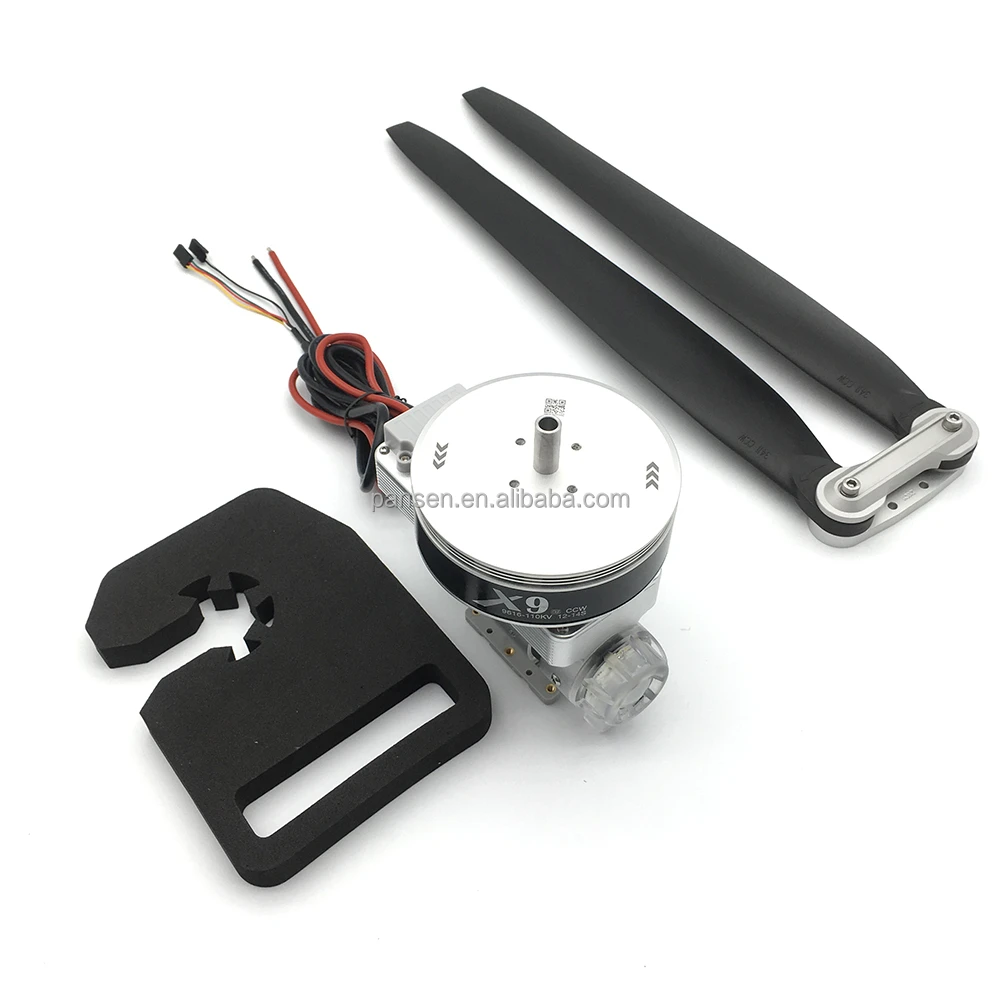

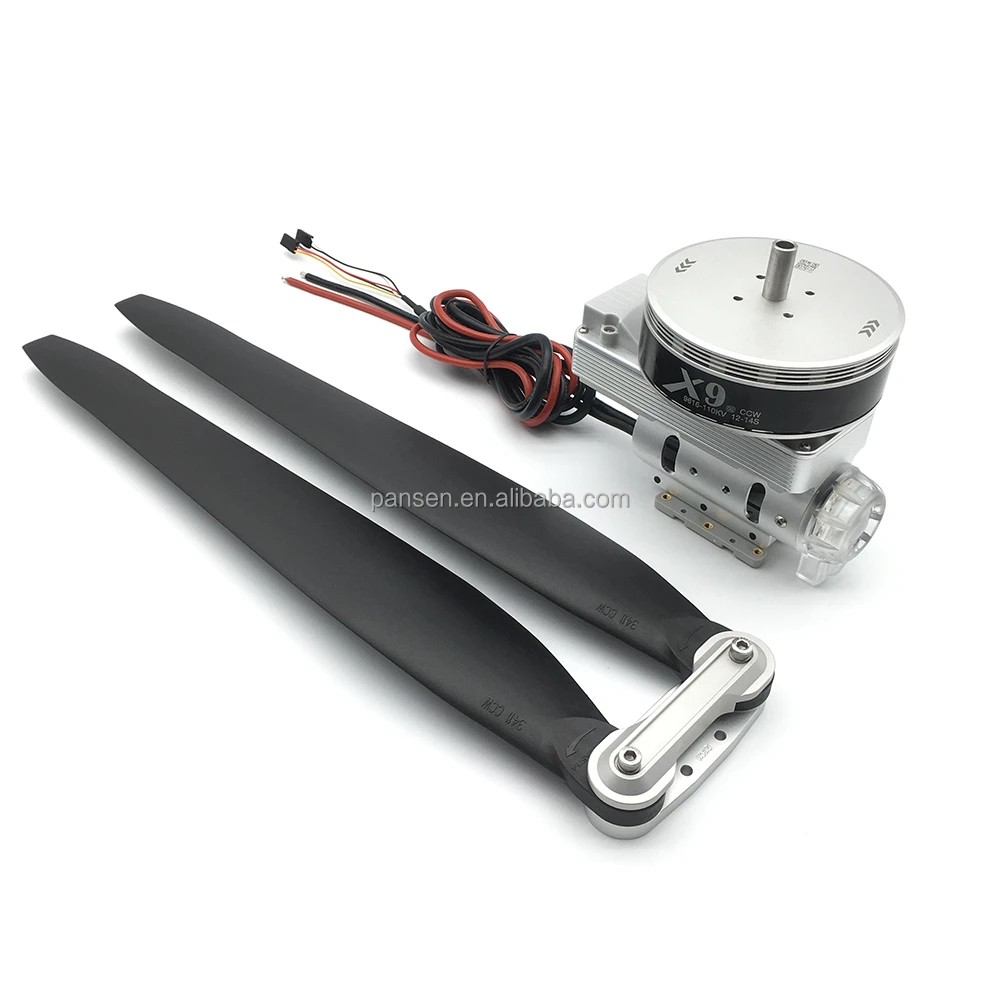

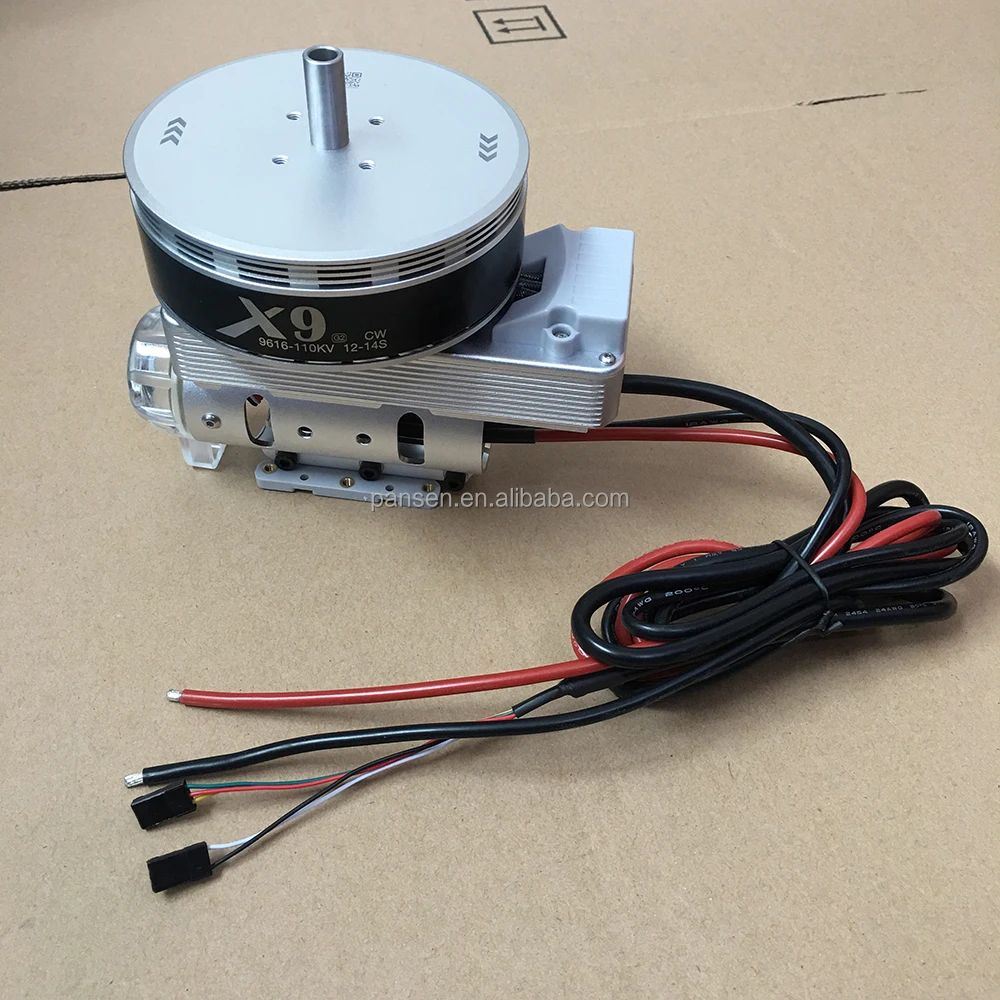

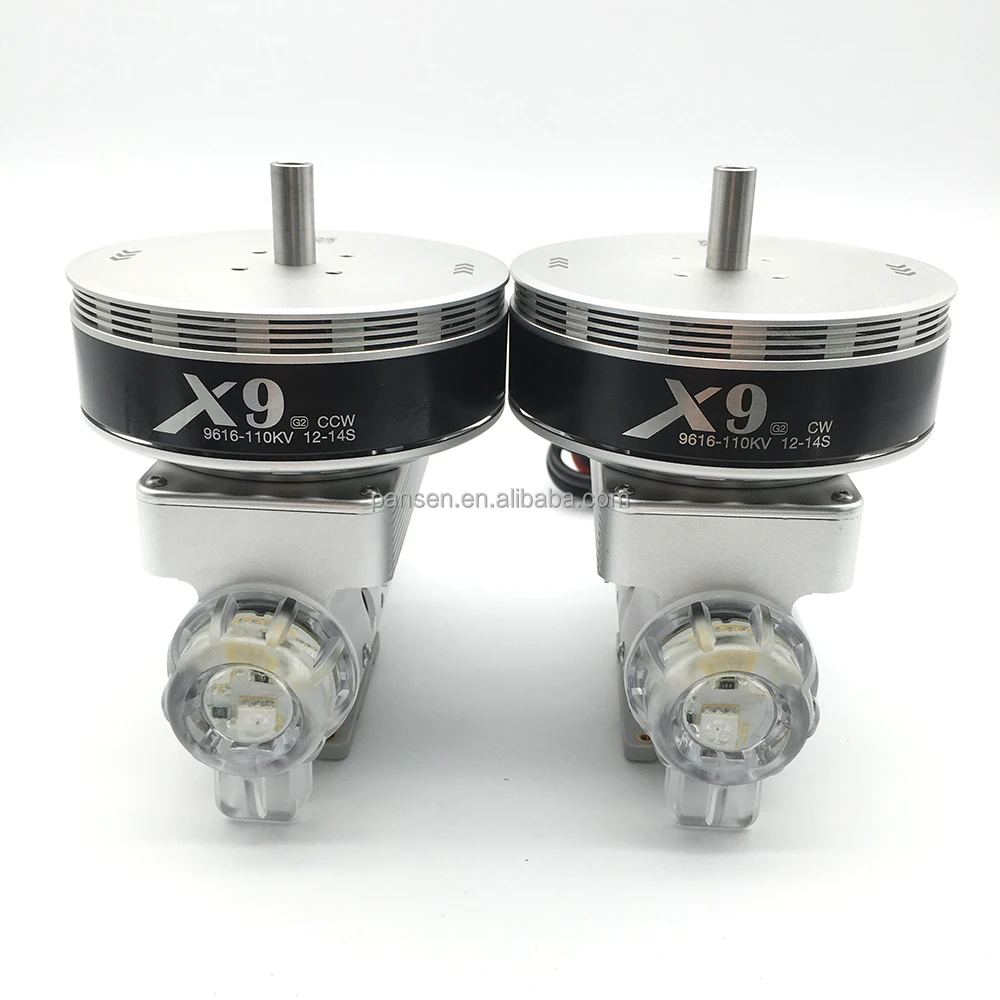

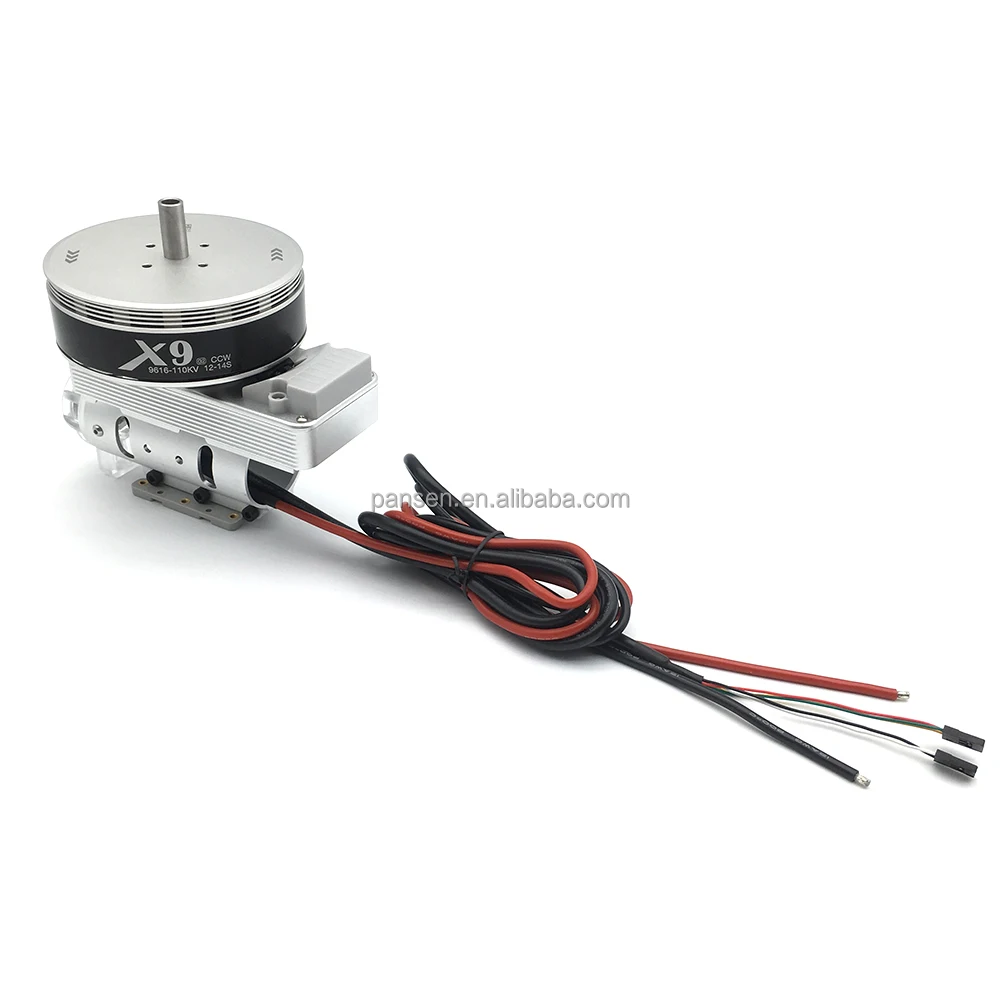

Product Name: X9 Power System Combo
Max. Thrust: 15.3kg/Axis (48V, Sea Level )
Recommended LiPo Battery: 12S LiPo
Recommended Takeoff Weight: 5-7kg/Axis(48V,Sea Level)
Combo Weight: 1040g
Waterproof Rating: IPX7
Operating Temperature: -20℃~65℃

Motor
Stator Size: 81*20mm
KV Rating: 100KV
O.D of Carbon Fiber Tube: Φ35mm/Φ30mm (*Tube Adapter will be Needed)
Bearing: NSK Ball Bearing (Waterproof)

ESC
Recommended LiPo Battery: 6-12S LiPo
PWM Input Signal Level: 3.3V/5V (Compatible )
Throttle Signal Frequency: 50-500Hz
Operating Pulse Width: 1100-1940 μs (Fixed or cannot be Programmed )
Max. Input Voltage: 52.2V
Max. Input Current (Cont.): 80 A(w/ Good Heat Dissipation )
Max. Peak Current (10s): 100 A (w/ Good Heat Dissipation )
BEC: No
Nozzle Mounting Holes: Φ28.4mm-2*M3

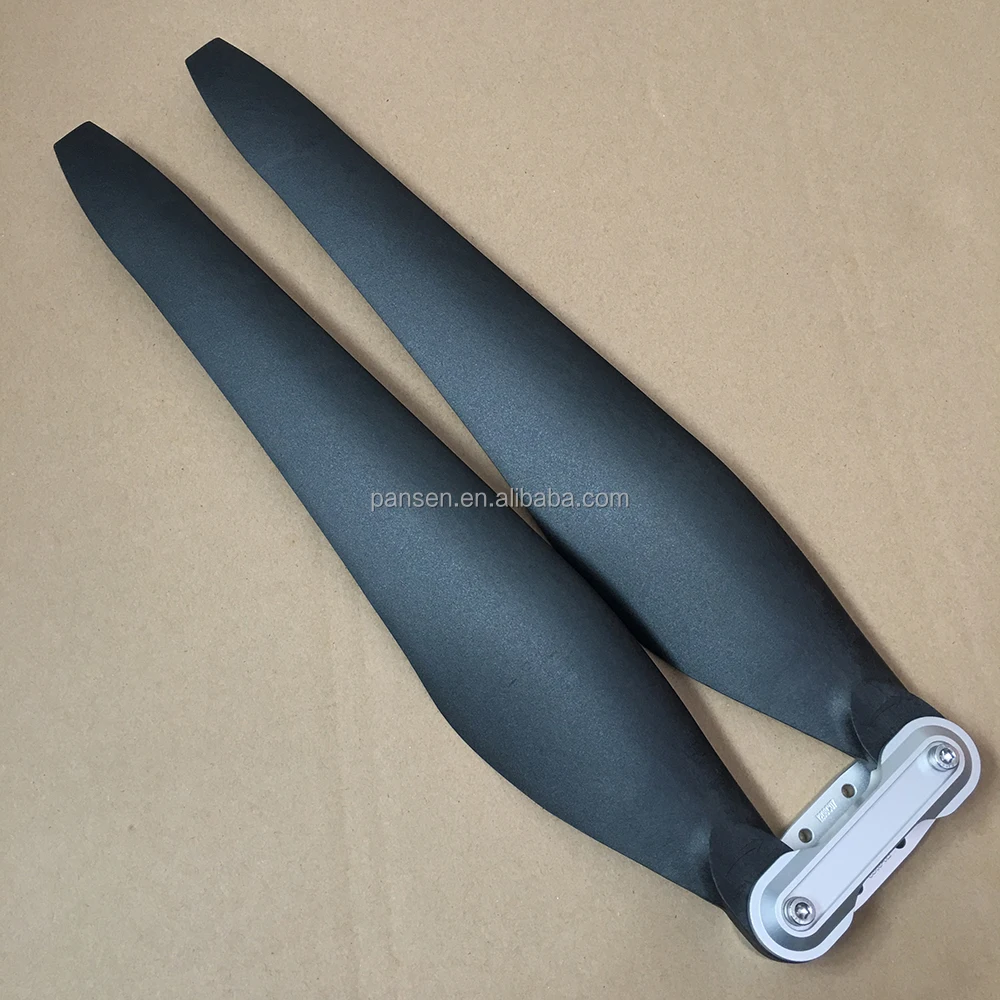

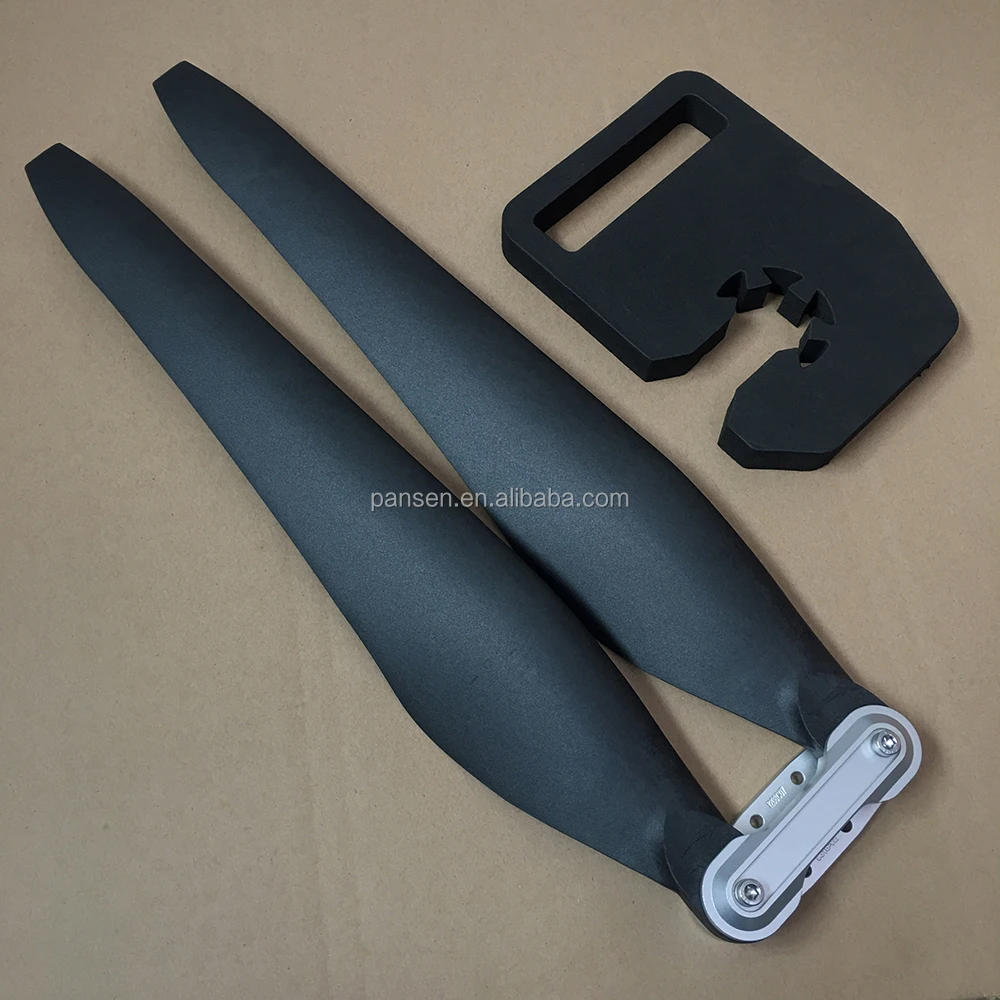

Propeller
Diameter×Pitch: 3411
Weight: 180g
